Electric Bicycle – Urbano Bike



Brushless SFM center motor
Shimano 9-speed chain shifting
Frame heights 480 and 530 mm





Engine: Center motor 250 W with gear reducer at the bottom bracket in aluminum housing
Rated capacity: 250 W
Mode: 5 modes and a “0” mode, pushing up to approx. 6 km / h
Arrangement of torque sensor: Integrated speed sensor


Circuit: SHIMANO Altus 9-speed chain shifting

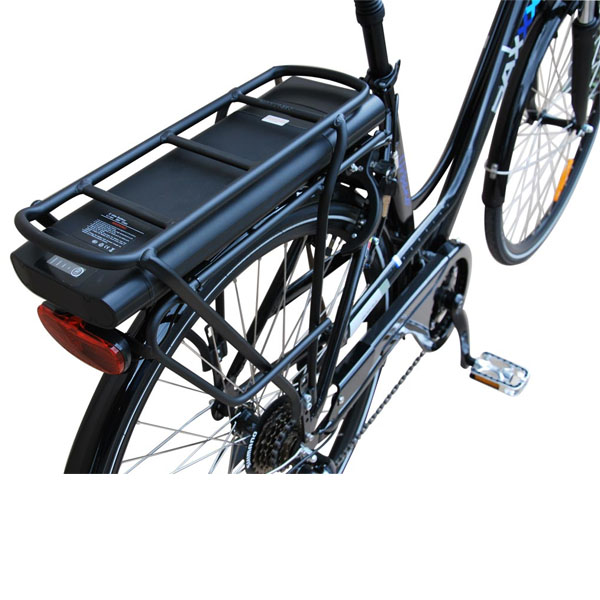

Battery: 36 V 13 Ah 468 Wh Lithium-ion battery (Li-Ion)

Category:

Product Description

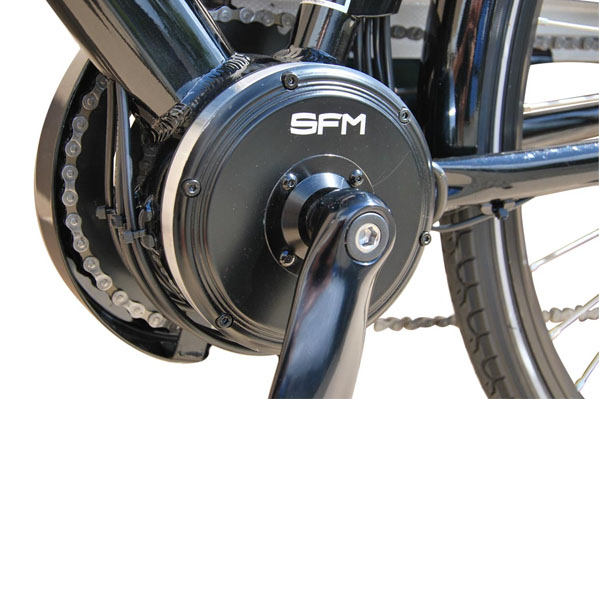

Brushless SFM center motor
Shimano 9-speed chain shifting
Frame heights 480 and 530 mm



Engine: Center motor 250 W with gear reducer at the bottom bracket in aluminum housing
Rated capacity: 250 W
Mode: 5 modes and a “0” mode, pushing up to approx. 6 km / h
Arrangement of torque sensor: Integrated speed sensor


Circuit: SHIMANO Altus 9-speed chain shifting
Battery: 36 V 13 Ah 468 Wh Lithium-ion battery (Li-Ion)
Reach: from about 30 km to 120 km
Frame: Aluminum 6061 Berceau frame 28 “


Frame height: 48 cm and 53 cm
Front suspension: SR SUNTOUR suspension fork
Front brake: Tektro V-Brake with modulator

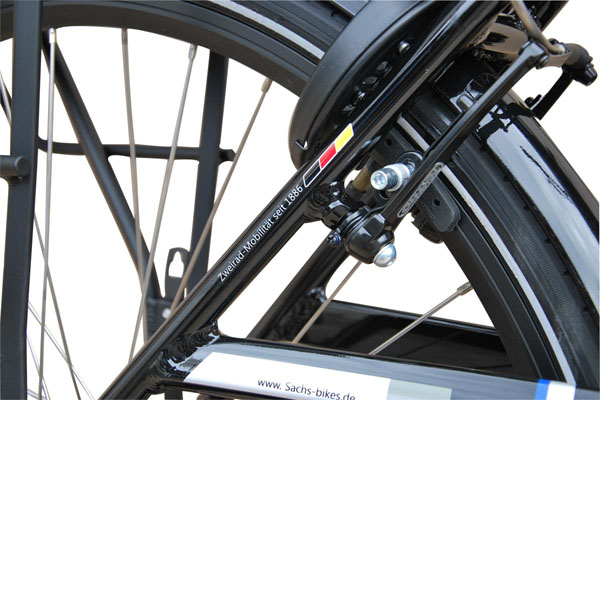

Rear brake: Tektro V-Brake with modulator


Front Tires: KENDA ETRTO: 37-622
Rear Tires: KENDA ETRTO: 37-622
Rims front: Inch: 28 x 1.75
Rear rims: Inch: 28 x 1.75


Lighting: Spanninga
Mass: 27.0 kg (with rechargeable battery)
Perm. Total weight: 130 kg
Perm. Load baggage carriers: 25 kg


Dimensions: 1820 x 770 x 850 mm (53 cm), 1820 x 770 x 1280 mm (48 cm)
Seat height / bar width: 910 mm (48 cm), 1110 mm (53 cm)
maximum speed: 25 km / h
Color: black
